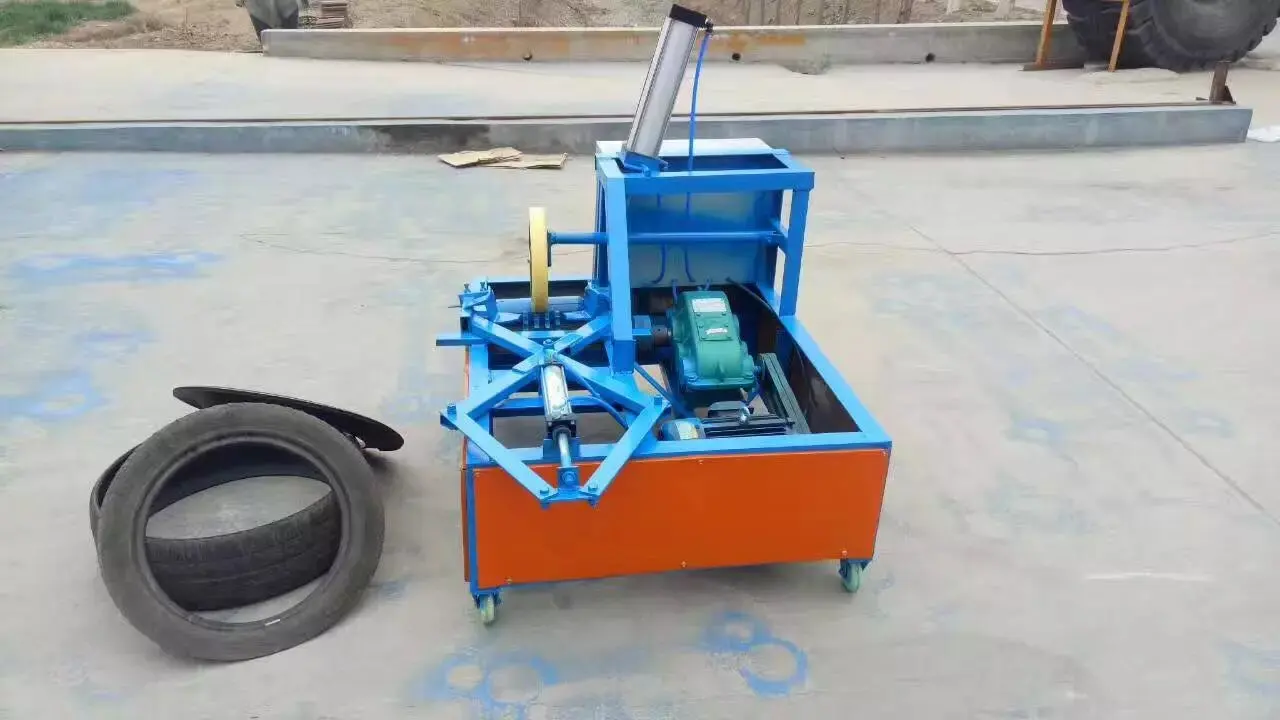

1. Ring cutter machine
This machine mainly used to cut the sidewall of steel wire tire, and then to the next step of segmentation. First, put the tire on the platform, then rotate the hand wheel, the three claws will stick the inner tire firmly. Second, starting power, Work platform will rotation, cutting tool according to need to cut tire slowly step by step, until the tire side cut off.
| Model and specification | 600-900 |
| Rotated speed of motor | 1440r/min |
| Production capacity | 60 pcs /hour |
| Motor power(KW) | 3 |
| Dimension(mm) | 1300*1300*1500 |
| Weight (T) | 300kg |
2. Strips cutter machine
| Item | Parameter |
| Motor Power | 5.5kw |
| Disc Diameter | 380mm |
| Rotate Speed | 18.4r/min |
| Dimension | 1290*870*1550mm |
| Weight | 660kg |
Strips cutting machine can cut cycle machine to remove the wire tire sidewall cut into strips, and the width of the adjustable section. Two circular knives for special materials, hard and durable, can be used repeatedly grinding for no more than 1200 steel tires.
3. Block cutter machine
| Item | Specification |
| motor power | 11kw |
| Speed of main screw | 420 r/min |
| Out diameter of cutter | 200mm |
| Dimension | 1130*830*1100mm |
| Weight | 620kg |
Block Cutter is designed to cut car, truck and rear tractor tire. Range is up to 1200mm truck tires. The tire cutter adds flexibility to your total tire cutting system by providing you the opportunities of accepting tires up to 120cm into your
system. The unit also allows your system to cut 60-70 truck tires per hour or 120-150 car tires per hour.
This machine possesses of unique structure, advanced technology low energy consumption, high efficiency, long life .
4 Steel separator machine
| Item | Specification |
| Motor power | 15 KW |
| Linear speed of front roller | 15.5 m/min |
| Ratio of speed | 1.1 r/min |
| Dimension | 1520*1150*12101mm |
| Weight | 1300kg |
Be utilized to separate rubber and steel wire of bead in order to get whole steel wire,
Feature: It is easy operation, easy to be installed and maintained high efficiency and clean etc.
